Powerfun 50mm 3S D2627-4900kv EDF.Powerfun EDF.Powerfun Official Retail Store,powerfun model.Powerfun Official Retail Store
Home >> Cheap wholesale Powerfun EDF >>Powerfun 50mm 3S D2627-4900kv EDF
Powerfun 50mm 3S D2627-4900kv EDF
Powerfun 50mm 3S D2627-4900kv EDF
  • Powerfun 50mm 3S D2627-4900kv EDF
  • Powerfun 50mm 3S D2627-4900kv EDF

Powerfun 50mm 3S D2627-4900kv EDF

Special price: [ US$22.00 ]
Shipping Cost: [ US$180.00 ]
Ship to:
Estimated Delivery: 3 to 7 business days
Powerfun 50mm 3S D2627-4900kv EDF

1.it requires 3S 1500 MAH 35C Lipo Battery
2.it requires 40A ESC.

if the buyers want to know wholesale discount price,please contact us by e-mail.

Powerfun 50mm 3S D2627-4900kv EDF Specifications:





This Products is available in stock.

This Products is available in stock.

This Products is available in stock.

we will ship the package within 48 hours after the buyers pay momey by paypal

it is made in China Powerfun in Donguan city ,100% original,



Brand:Powerfun

model:50mm 11 Blades EDF with 4900KV Brushless motor

100% new

Specification

Material: PA66+GF

Gold plated connector: F3.5

KV: 4900

Motor Weight: 55g

Housing Weight: 20g

Max Voltage: 12.6V

Max Current: 38A

Max power: 478W

Max Thrust: 770g

Set Weight: 75g

diameter: 50mm

Recom.Battery: 3s 1500MAH 25C
Recom.ESC:40A

Features:

  • High performance 50mm 11 blade EDF unit.
  • Motor already installed, dynamic balanced by factory.
  • With removable horn shape intake ring included.
  • 11 blade fan produces more realistic, lower-pitch sound.
  • Suitable for most 50mm EDF jets on the market. For some jets, removal of some foam might be needed to accommodate.

Descriptions:

  • Outside Diameter: 55.4mm
  • Ducted Fan Length : 34mm (With wing intake ring)
  • Rotor DIameter: 50.7mm, 11 blades
  • Overall Weight: 77g (Fan + Motor)
  • Motors: 4900KV outrunner brushless motor installed
  • Recommended Power Source: 3S LiPO
  • Static Thrust: Up to 770g at 12.6V (38A)
  • Connector: 3.5mm Bullet Connector

Cool powerfun EDF:Excellent dynamic balance,Perfect design,powerful thrust,wonderful realistic sound,Superb technology and craftsmanship

  • All the powerfun EDF with motor have already dynamic balance tested.
  • Superb technology and craftsmanship that make the EDF Running smoothly,Easy cooling,Stable structure,Safe and durable,excellent realistic sound.Make your plane more Efficient and stable.
  • Powerfun cool motor combined with the optimized design of ducted fan , the max trust can reach 770g and max Current is 38A when powered by lithium batteries.That we recomment use 40A ESC and 3s 1500MAH 25C Lipo

Powerfun 50mm 3S EDF have Dual version to meet different needs

4900KV/4S brushless motor with ducted fan for RC airplane,50mm ducted fan with motor,

Perfect Design and Advanced Manufacturing:

  • The streamlined design combined with CFD simulation analysis can effectively reduce noise and make the sound effect more realistic during high-speed operation.
  • The special design of the radius and curvature of the leading edge of the EDF ensures sufficient air intake.
  • The combination of high-precision mold manufacturing and advanced injection molding technology ensures the consistency of the fan blades and makes it easier to achieve dynamic balance.

Powerful 4900KV/3S outrunner blussless motor

3S 4900KV Brushless Motor,brushless motor Edf,ducted motor,3S motor,RC brushless motor,rc motor

Cool motor Make your rc model more Efficient and stable

  • Running smoothly,Stable structure,Safe and durable,excellent realistic sound,Easily dissipate heat,Precise and efficient
  • Multiple Protection Features: Abnormal startup protection, over-heat protection, throttle signal loss protection, low-voltage cut-off protection etc.
  • Powerfun motor Continuous operation: high temperature resistance,wear resistance and stable,it's more anti-aging and durable.Premium motor provides stable and balanced operation when in continuous working.

Powerfun 50mm Fan accessories and wires

balanced ducted fan,high-speed motor,balanced duct fan,3s rc brushless motor,4s rc brushless

balanced ducted fan,high-speed motor,balanced duct fan,3s rc brushless motor,4s rc brushless

balanced ducted fan,high-speed motor,balanced duct fan,3s rc brushless motor,4s rc brushless

balanced ducted fan,high-speed motor,balanced duct fan,3s rc brushless motor,4s rc brushless

Materials:

  • High-quality engineering materials:PA66+GF,solid barrel,stable structure

Unique design:

  • Removable guide ring design,Adapt to a variety of models.

Blades Ducted Fan:

  • Multi-scene, detachable diversion coil, suitable for various models

Pure copper wire:

  • Strong conductive, fast heat dissipation, high temperature resistant silicone wire.

50mm 4900KV/3S EDF Main Parameter��

Brand: Powerfun
Model: 50mm 11 Blades EDF with 4900KV/3S
Material: PA66+GF
Gold plated connector: $3.5
KV: 4900
Motor Weight: 57g
Housing Weight: 20g
Max Voltage: 16.8V
Max Current: 38A
Max power: 478W
Max Thrust: 770g
Set Weight: 75g
diameter: 50mm
Recom.ESC: 40A
Recom.Battery: 3s 1500MAH 25C
wire: Pure copper

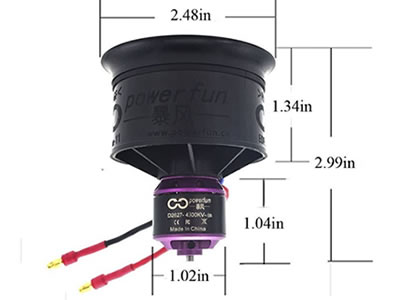

50mm edf Size display:

balanced ducted fan,high-speed motor,balanced duct fan,3s rc brushless motor,3s motor,50mm ducted

Outstanding size and combination

  • Keep a distance of 0.5 inch between the blade and the shell to ensure excellent performance.
  • The blades are great matched with the deflector that the high-speed spiral airflow is discharged smoothly, and the loss of air flow energy is minimized.

Believe me ,Powerfun EDF Will give you the most powerful and excellent experience

balanced ducted fan,high-speed motor,balanced duct fan,3s rc brushless motor,4s rc brushless motor,

Wide range of application scenarios

Powerfun EDF Not only used for RC aircraft models, but also widely used in RC car models, RC ship models, to provide power and test for various RC products and etc.
